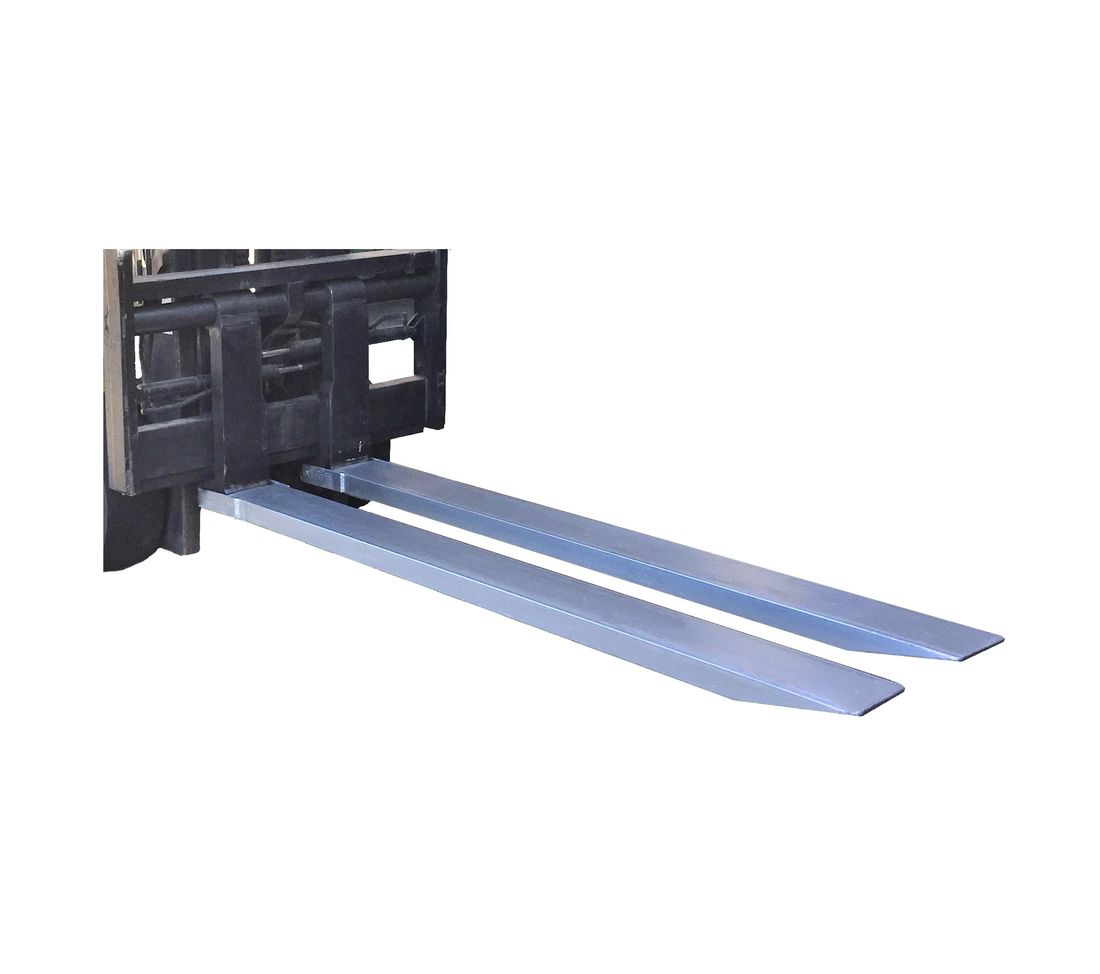

Fork Extensions-FE Type

The Fork Extensions is the best choice to extend the length of fork to a maximum of 1.6 times as long as fork

Other sizes are available according to customer's requirements.

Surface treatment:painted or galvanized finish

Specifikacija:

Tipas	Modelis	Ilgis (mm)	Max .Fork Size(mm)	Vieneto svoris (kg/pair)	Talpa (kg/mmLC)
Double-sided	FE1-16	1600	100*45	50	3000/600
	FE1-18	1800		56
	FE1-21	2100		66
	FE1-24	2400		75
	FE2-16	1600	130*50	59	4500/600
	FE2-18	1800		66
	FE2-21	2100		77
	FE2-24	2400		88
	FE3-16	1600	150*55	91	6500/600
	FE3-18	1800		102
	FE3-21	2100		119
	FE3-24	2400		136
	FE3-30	3000		170
	FE4-18	1800	165*65	112	8500/600
	FE4-21	2100		132
	FE4-24	2400		152
	FE4-30	3000		186

Pastaba:

Requires contacting the manufacturer of your fork truck for written approval for the use of any fork truck attachment.

Standards require that the length of fork extensions do not exceed the lift truck fork length by

more than 50%. (e.g.,Fork extension used on 48" long lift truck forks should not exceed 72".)

The use of extensions effect lift truck capacity. Contact lift truck manufacturer for load capacity

reductions.

---

Šakinių šakių pratęsimai

Forklift Fork Extensions Extend Fork Length 50% for Improved Material Handling.

Forklift Fork Extensions are made with heavy duty steel and have a welded safety heel restraint to provide long lasting durability. Durable safety yellow or red powder coat finish offers high visibility. Fits fork widths 4", 5" and 6". Fork lengths are 60", 72" and 96". Sold in pairs.

Note: Extension width is 1-1/8" greater than fork width.

Note: OSHA requires contacting the manufacturer of your truck for written approval for the use of any fork truck attachments.

Note: OSHA regulations state that the length of the Fork Extensions may not exceed fork length by more than 50%.
